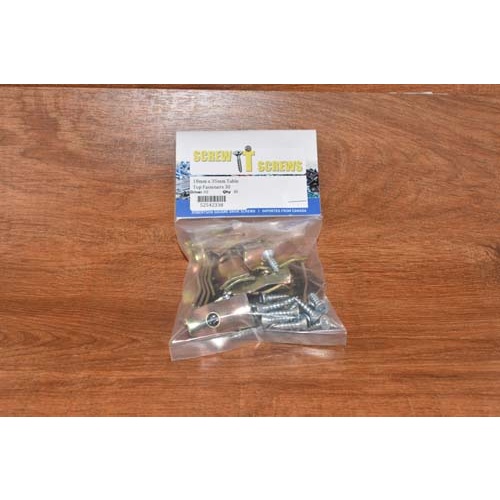

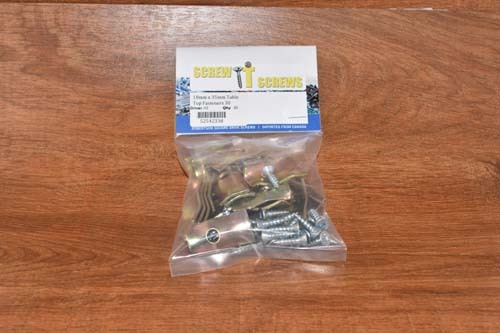

18mm x 35mm..Table top fasteners Pack 30 with screws 10G x 19mm (3/4") Flat head Zinc With #2 Driver Bit
Table top fasteners are simple stamped metal clips which are used to secure table tops to rails. If a table top is simply screwed to the frame or rails it is locked to the rails and cannot “breathe” with variations in climate. Since there is often no room to move that expansion and contraction must go somewhere and if often causes splitting. When table top fasteners are used there is the ability to move and splitting is avoided. To use these clips you simple cut a slot in the rail about 5mm wide and 10-12mm from the top of the rail. The tip of the clip is inserted into the slot and the clip screwed to the underside of the table. The clips accept any #8, #10 or #12 gauge flat head (countersunk) screw. They are finished in yellow zinc plating. They are available in packs of 30,40,100. They are slightly thicker than the earlier versions we had available but work in exactly the same manner.
